48v 800w Mini Metro e rickshaw With roof Family use electric auto rickshaw picnic three wheel motorcycle vehicle

Short Description:

Use for both electric adult  tricycle passenger and three wheel electric cargo rickshaw

Waterproof and sunscreen with ceiling design

HOT  SALLE

LED light is brighter and clearer


  • Name: QS-MINI BD
  • Motor : 48V 500W
  • Controller : 48v 500w
  • Weight : 190kg
  • Loading capacity: 150kg
  • ground clearance: 10cm
  • Match battery: 48v 32ah
  • color : optional
  • Product Detail

    Information

    Product Tags

    ps 7
    NOTICE FOR ELECTRIC TRICYCLE PRICE SHOWING AT ALIBABA
    Dear Customers, All of our prices showing above at Alibaba not include battery price.
    Because many customers buy battery in their country for a lower import tax.
    All the prices here in Alibaba are based on order quantity of one 40′HQ container.
    650w Motorized 3 Wheel Electric Tricycle for Adults or Old People Production Introduction

    Small Size E Rickshaw Three-Wheelded Mobility Scooter With Seat for 3 People 3-Wheel 3 Passenger Scooter

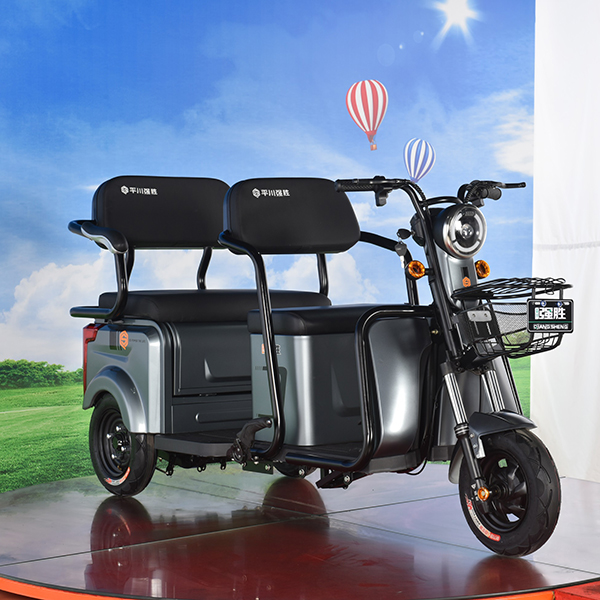

    QS BADAO model is very popular small size electric tricycle for Adult Use.

    It can be use for both passenger loading and cargo loading.

    It has a max speed of 28km/h.

    Four spring dampers can reduce the shocking on bad road condition.

    It is easy to driving and convenient.

    Motor type:
    Brushless direct current motor
    Power (watt) :
    48V/650W QSD brand motor
    Controller:
    12 tube QSD brand controller
    Rear axle
    rigid rear axle
    Charge Voltage:
    220V,50HZ
    Charging time
    6-10hours
    Transmission mode:
    Differential
    Top Speed (km/h) :
    ≤28km/h
    Continued trip mileage:
    ≤35km
    Climbing ability
    ≤20degree
    Brake distance
    3.2m
    Windshield,roof and curtain
    Included
    Front Wheel Size
    3.00-10
    Rear Wheel Size:
    3.00-10
    Brake type:
    Double rear drum brake
    Ground Clearence :
    20cm
    Dimension:
    2330mm*950mm*1100mm
    N.W( kg without battery) :
    124KG
    Max load capacity:
    ≤300kg
    No of passenger (including driver):
    3 persons
    Battery type:
    48v 20ah lead-acid batteries( Price doesn’t include battery)
    Battery Quantity:
    4pcs of 12v 20ah battery
    Charger
    48v charger
    Container QTY
    70pcs/40′HQ  MOQ
    Electric Tricycle Scooter For Both Passenger and Cargo Transporation Details

    Package Methods for Importing Electric Tricycles
    Vehicle Packing Method CKD, SKD, CBU
    CKD means complete knock down packing
    SKD means semi knock down packing
    CBU means complete built up

    For Electric Tricycle Sample Order
    If order quantity is less than one container the electric tricycles need to be protected by big steel frame wooden case. Every
    cost for exporting is added on one unit price and import costs for customers are high. Unless a sample is needed for customer and
    customer has the ability to make sea transportation and import customs clearance we can’t sell one unit to the end customer.
    For Electric Tricycle Wholesaler Order

    Here blow is the sample of costs according to different packing methods, CKD is the best choice for whole seller
    packing method
    quantity/40′HQ container
    sea freight /40′HQ container(USD)
    average cost (USD)
    Advantages
    CKD
    50
    2000
    40
    lower cost, lower import tax
    SKD
    28
    2000
    71.4
    easy to assemble
    CBU
    18
    2000
    111.1
    no need to assemble
    Family Use Old People Tricycles Manufacturing Factory Introduction

    QIANGSHENG GROUP CO.,LTD.-Professional Manufacturer for Electric Tricycle

    We are located in Xianghe County, Langfang City, Hebei provice, China.
    Our factory covers an area of 20000 sqm with 400 workers.
    We have 7 sets of laser cutting machines, 20 robot welding machine.
    6 set of hydraulic punching machines and about 50 sets CNC bending and cutting machine.
    5 assembly plants and environmental protection electro plating plant.
    We export our electric tricycle since 2013.
    Every year we export around 50000 units to Indian, Bangladesh, Nepal,Sierra Leone, Nigeria.Mexico, Peru and Chile.

    Our Electric 3 Wheeled Vehicles Are CCC Certified And Have WMI for VIN

    We have our own test facility and high tech inspection plants for our electric tricycles

    Our Electric 3 Wheeled Vehicle Guarantee

    Our Electric 3 Wheeler Tricycles Are CCC Certificated

    Our product quality is certified in China and export to India, Bangladesh, Nepal, Mexico etc for more than 50000 units per year.

    Our guarantee details as follow:

    A. The frame, body and front fork shall be replaced in case of desoldering and fracture within 6 months. (the causes of external impact, strong turbulence and overload damage are not covered by the warranty.)B. Repair or replace the paint or spray parts that fall off in a large area within three months (artificial damage, scratch is not covered by the warranty)C. The chrome coating on the handlebars and rims blisters and falls off. They will be replaced free of charge within three months.D. The controller and charger shall be repaired or replaced in case of failure within 10 months. (damage caused by wrong power supply is not within the scope of maintenance)E. Repair or replace the damaged gear, broken bearing and cracked motor housing seat within 10 months







  • Previous:
  • Next:

  •

    网站详情_01

    Company informatio

    网站详情_03

    Qiangsheng Group is founded in 2005,Located in Xianghe county(Beijing-Tianjing corridor).


    It is a professionl enterprise that specializing in electric tricycle R&D,production,sales,trading and spare parts service.
    Our factory covers an area of 50,000 square meters,owns the most advanced production line and detection equipment,professional
    welding workshops,machining workshops,electrophoresis painting workshops and assembly workshops.





    网站详情_04

    Our electric tricycle have awarded numbers of patents:Double rear axle,Multifunctional shed,Gearbox,Electic insulation box,Movable seat,Folding seat,Etc.We are awarded Chinese

    famous brand,Consumers Trust products,CCTV Brand as well.We have built stable supplying

    relationship inSouth Asia,Southeast Asia,Middle East Asia,Africa,South America.

    网站详情_05
    Company Name:Xianghe Qiangsheng Electric Tricycle Factory

    Operational Address:Qianwang Industry Park, Xianghe County, Langfang, Hebei, China

    PACKING

    CKD reduce the sea freight of a single vehicle , save the transportation cost

    factory1_08

    SERVICE

    24-hour online servic

    We will send customers a video to show them how to assemble an electric tricycle for cargo or passenger.

    Any questions are welcome

    网站详情_08

    FAQ

    1.Q: Where is your company located? How can I visit there?
    A: Our factory is located in Xianghe county (Beijing- Tianjin corridor), Hebei province, China. Welcome to visit us, the nearest
    airport is Beijing capital international airport, and we will arrange customer pickup.
    2.Q: What’s the MOQ?
    A: Our economic order quantity is a 20′ GP amount. Sample and LCL shipment accepted, but cost much higher.
    3.Q: What is the payment terms?
    A: T/T is our preference. 30% as deposit, and 70% before delivery. Photos of the products and packages will be sent to you before
    you pay the balance.
    4.Q: What’s the delivery time?
    A: Mostly we don’t have products in stock, it will take about 15-20 days to finish an order generally speaking.
    5.Q:What is your shipping terms?
    A: EXW, FOB, CIF.
    6.Q: What certificate do you have?
    A: We can apply any certificate under your require if the order QTY is OK.
    7.Q: Do you test all your goods before delivery?
    A: Definitely! 100% test before delivery by professional test line is necessary to us.
    8.Q: How do you make our business long-term and good relationship?
    A: We keep good quality and competitive price to ensure our customers benefit, and we respect every customer as friend doing business with them sincerely, no matter where they come from.
